TL-SG1218MPE 18 Port GigabitTL-SG1218MPE 18 Port Gigabit


| TP-Link TL-SG1218MPE 18-Port Gigabit

Price : ৳ 22,500.00

Regular Price :৳ 24,500.00

Status : In Stock

TL-SG1218MPE-18-Port-Gigabi

TL-SG1218MPE

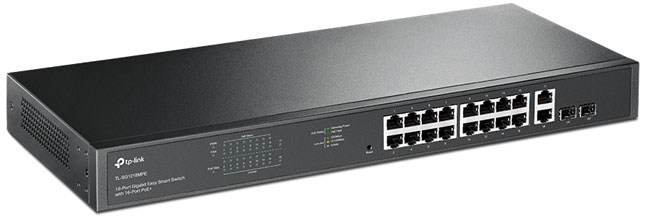

18-Port Gigabit Easy Smart Switch with 16-Port PoE+

  • 16× PoE+ gigabit RJ45 ports, 2× gigabit non-PoE RJ45 ports and 2× combo gigabit SFP slots.
  • PoE power budget is up to 250 W, making it ideal for small to medium business surveillance systems.*
  • Port Priority is able to guarantee the quality of sensitive application like video monitor.
  • PoE Auto Recovery automatically reboots your dropped or unresponsive PoE-powered devices.
  • Intelligent power management protects the switch from overload.
  • QoS ensures smooth traffic for latency sensitive applications.
  • IGMP Snooping optimizes multimedia traffic delivery, such as IPTV.
TP-Link TL-SG1218MPE 18-Port Gigabit Datasheet .PDF

Product Specification

The product features and specifications are subject to change without prior notice

  HARDWARE FEATURES »

Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

Interface

• 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 2× Combo Gigabit SFP Ports

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-X MMF, SMF

Fan Quantity

2 Fans

Physical Security Lock

Yes

Power Supply

100-240 V AC~50/60 Hz

PoE Ports (RJ45)

• Standard: 802.3at/802.3af compliant
• PoE+ Ports: Ports 1–16
• Power Supply: 250 W

Dimensions ( W x D x H )

17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Mounting Rack

Mountable

Max. Power Consumption

• 21.4 W (220/50Hz. no PD connected)
• 296.3 W (220/50Hz. with 250 W PD connected)

Max. Heat Dissipation

• 72.97 BTU/h (no PD connected)
• 1010.38 BTU/h (with 250 W PD connected)

  PERFORMANCE »

Switching Capacity

36 Gbps

Packet Forwarding Rate

26.8 Mpps

MAC Address Table

8K

Packet Buffer Memory 4.1 Mbit

4.1 Mbit

Jumbo Frame

9 KB

  SOFTWARE FEATURES »

Quality of Service

• Support Port-based 802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control

L3 Features

• IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
• PoE Auto Recoveryy

VLAN

• VLAN Group
– Max 4K VLAN Groups
• 802.1q Tagged VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• GVRP
• Voice VLAN

Management Features

• Web-based GUI
• Easy Smart Configuration Utility

Transmission Method

Store-And-Forward

  OTHERS »

Certification

CE, FCC ,RoHS

Package Content

• TL-SG1218MPE
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet

Environment

• Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

  Warranty »

Warranty

1-Year Limited Hardware Warranty

*Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Please go to Omada Cloud-Based Controller Product List to find all the models supported by Omada Cloud-Based Controller.

Related Products

In Stock

TL-SF1005D-5

TP-Link TL-WR850N N300 Wi-Fi RouterTL-SF1005D 5-Port 10/100Mbps Desktop Switch
৳  800.00

Learn more
In Stock

TL-SF1008D 8-Port

TP-Link TL-WR850N N300 Wi-Fi RouterTL-SF1008D 8-Port 10/100Mbps Desktop Switch
৳  1,150.00

Learn more
In Stock

TL-SF1016DS-16-Port

TP-Link TL-WR850N N300 Wi-Fi RouterTL-SF1016DS 16 Port Rack Mount
৳  6,500.00

Learn more
In Stock

TL-SG3210 8-Port Gigabit L2+

TP-Link TL-WR850N N300 Wi-Fi RouterTL-SG3210 JetStream 8-Port Gigabit L2 Managed Switch with 2 SFP
৳ 9,500.00

Learn more
In Stock

TL-SG116 16-Port Gigabit Desktop Switch

TP-Link TL-WR850N N300 Wi-Fi RouterTL-SG116 16-Port Gigabit Desktop Switch
৳ 6,500.00

Learn more
In Stock

TP-Link TL-SG1024D 24-Port

TP-Link TL-WR850N N300 Wi-Fi RouterTL-SG1024D 24-Port Gigabit Rackmount Switch
৳  7,500.00

Learn more
In Stock

TL-SG2218 JetStream 16-Port Gigabit

TP-Link TL-WR850N N300 Wi-Fi RouterTL-SG2218 JetStream 16-Port Gigabit Switch
৳  12,500.00

Learn more
In Stock

TL-SG1218MPE 18-Port Gigabit

TP-Link TL-WR850N N300 Wi-Fi RouterTL-SG1218MPE 18-Port Gigabit Easy Smart Switch with 16-Port PoE+ Switch
৳ 22,500.00

Learn more
In Stock

TP-Link-TL-SG2428P-JetS

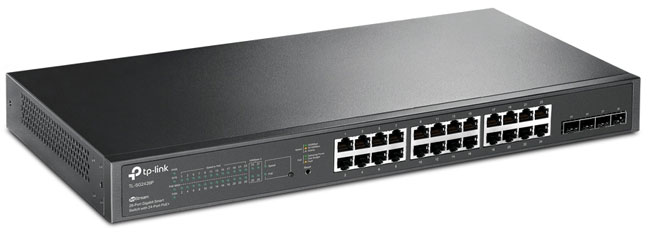

TP-Link TL-WR850N N300 Wi-Fi RouterTL-SG2428P JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+
৳ 30,000.00

Learn more
In Stock

TL-SG3428MP-28-Port

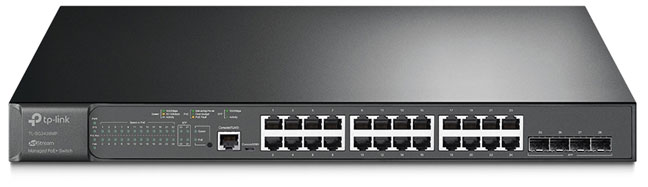

TP-Link TL-WR850N N300 Wi-Fi RouterTL-SG3428MP JetStream 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+
৳ 38,500.00

Learn more
In Stock

TL-SG3428XMP-JetStream-24-P

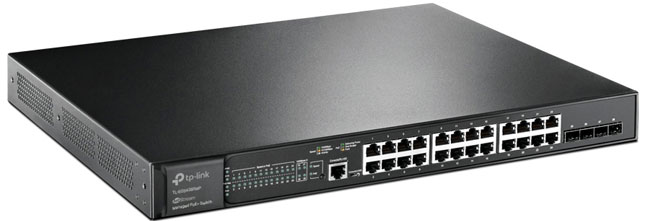

TP-Link TL-WR850N N300 Wi-Fi RouterTL-SG3428XMP JetStream 24-Port L2+ Managed Gigabit PoE
