Tenda AC5 AC1200 Smart Dual-Band WiFi Router

Brand : TP-Link

Discount Price: 2,050.00

Regular Price: ৳2,500.00

Status: In Stock

AC5

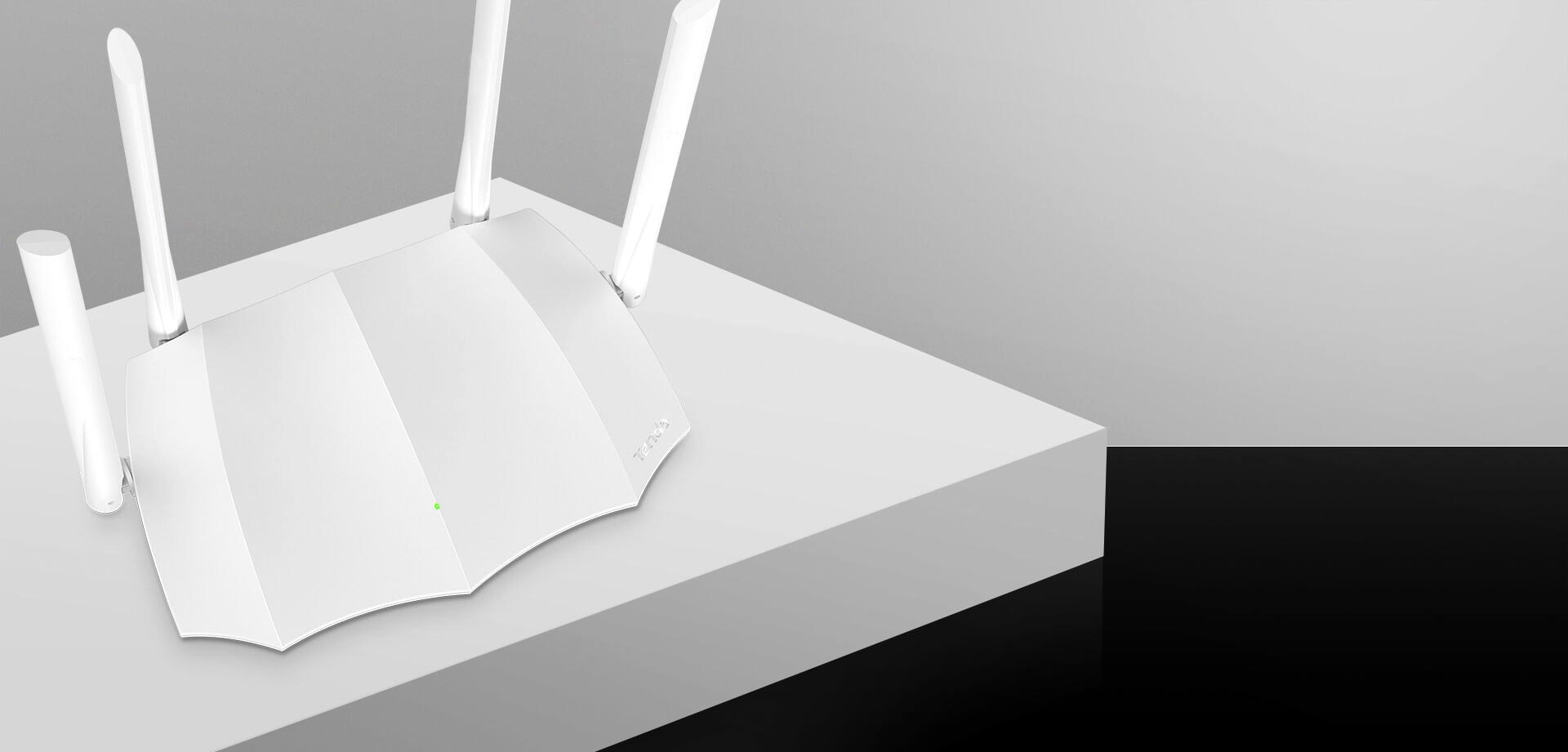

AC1200 Dual Band WiFi Router

AC5 is an AC1200 dual band WiFi router, designed for medium-sized apartment with a 100Mbps fiber access. It provides WiFi speed up to 1167 Mbps (5GHz: 867Mbps and 2.4GHz: 300Mbps). Adopted the integrated dual-band technology, combining 2.4GHz and 5GHz signals under one WiFi name. The faster band would be allocated to your devices automatically by our dynamic optimization system. Meanwhile, featured with 4*6dBi high-gain antennas and equipped with a 28nm high performance CPU, it brings a better internet experience. AC5 supports IPv6 protocol, it can reduce the data transmission time and minimize the lag. Furthermore, the remote management function by the Tenda WiFi App provides the easiest way to manage AC5.

AC1200

Model: AC5

AC1200 Dual Band WiFi Router

Designed for Medium-sized Apartment

Support-Fiber

Connect to single-band routers

Connect to AC5

Speed up by 6 times

Support Fiber Internet Up to 100Mbps

AC5 is a dual-band WiFi router,provides speed up to 1167 Mbps (5GHz: 867Mbps and 2.4GHz: 300Mbps) to get the most out of your 100Mbps fiber access,and brings a better internet experience, six times faster than single-band router.

Wi-Fi module of mobile phone

Single-band router

AC5 dual-band router

1*1 dual-band

72Mbps

72Mbps

2*2 dual-band

144Mbps

867Mbps

* Due to power consumption,most of smartphones only equip with 1*1 dual-band WiFi module.When you connect your phone with 2.4G single-band router,the WiFi speed is limited under 72Mbps, which is not able to exploit your 100Mbps fiber internet.

Tenda AC5 AC1200

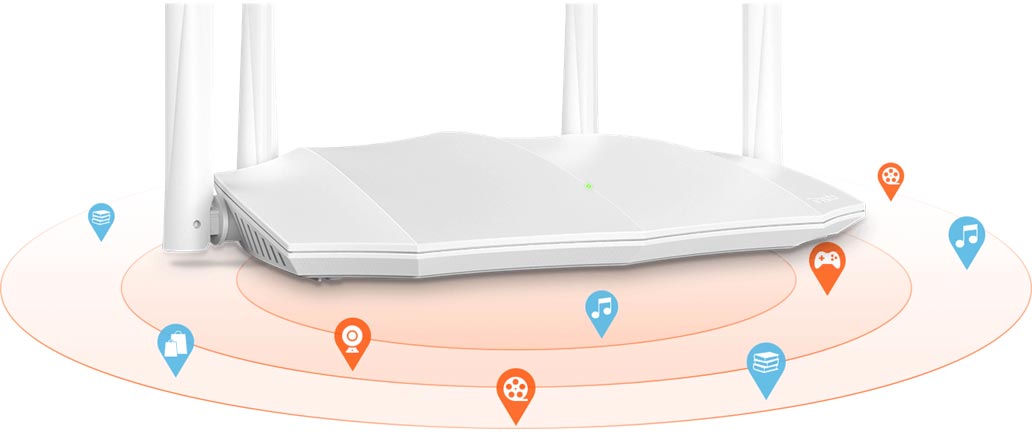

Smart Traffic Prioritisation

Adopted the integrated dual-band technology, combining 2.4GHz and 5GHz signals under one WiFi name. The faster band would be allocated to your devices automatically by our dynamic optimization system.

009

SSID1

2.4GHz

AC5

5GHz

SSID2

Specification_______________________________

      Specification

Standard&Protocol

 IEEE802.3, IEEE802.3u

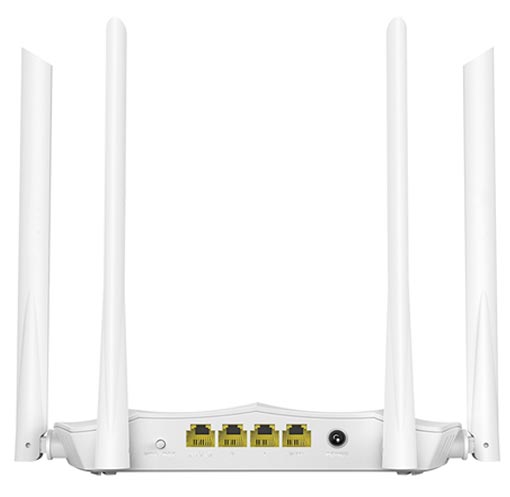

Interfaces

 10/100 Mbps WAN port*1
10/100 Mbps LAN port*3

Antenna

 6dBi External antenna*4

Button

WPS/Reset button*1, WiFi on/off button*1

Power

AC input: 100-240V-50/60Hz, 0.2A
DC output: 9V 1A

LED Indicator

SYS*1, WiFi*1, WAN*1, LAN*3

Dimension

 171mm*171mm*210mm(L*W*H)

      Wireless Functions

Wireless Standard

 IEEE 802.11ac/a/n @5GHz
IEEE 802.11b/g/n @2.4GHz

Data Rate

 5GHz: 867Mbps
2.4GHz: 300Mbps

Frequency

 Concurrent dual band 2.4 GHz & 5 GHz

Wireless Security

 WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS(WiFi Protected Set-up) fast encryption

      Software Function

Internet Connection Type

PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)

Operating Mode

 Wireless Router Mode
Universal Repeater Mode
WISP Mode
AP Mode

DHCP Server

 DHCP Server
DHCP Client List
DHCP Reservation

Virtual Server

Port Forwarding
DMZ Host
UPnP

Security

Client Filter (support blacklist and whitelist)
Parental Control
Remote Management

Firewall

 Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet

DDNS

 Support DDNS, No-ip, 3322.org, Oray.com, 88ip

VPN

 PPTP
L2TP
PPTP client
L2TP client

Basic Features

 SSID Broadcast: Enable/Disable
Beamforming
MU-MIMO

Transmission Power

 CE:
<20dBm(2.4G)
<23dBm(5G)
FCC:
<30dBm

      Other features

Temperature

 Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃.

Humidity

Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.

Default Settings

 Default Access: tendawifi.com or //192.168.0.1

Certification

 CE/FCC/RoHS

EIRP Power (Max)

 2.400 – 2.4835 GHz: 19.85 dBm (EIRP)
5.150 – 5.250 GHz: 22.96dBm (EIRP)

Others

 IPv6 Features Supported
Bandwidth Control
Guest Network
IPTV
MAC Address Clone
System Log
Backup & Restore configurations
Online firmware upgrade
Local firmware upgrade

Package Contents

 AC1200 Smart Dual-Band WiFi Router
Power Adapter
Quick Installation Guide
Ethernet Cable

Warranty

01 year
