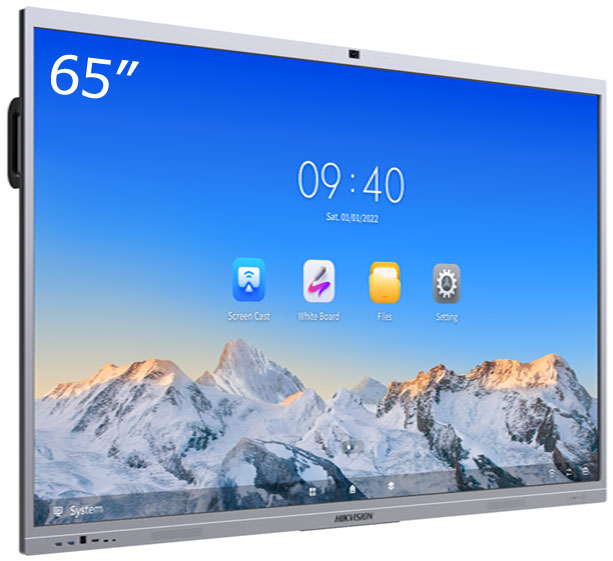

HIKVISION DS-D5C65RB/B 4K UHD IFP

Brand : HIKVISION

Discount Price: ৳225,000.00

.00Regular Price: ৳230,000

Status: In Stock

HIKVISION DS-D5C65RB/B

65-inch 4K Interactive Display

UHD 4K display with resolution of 3840 × 2160.
Anti-glare and anti-blocking design to ensure smooth interaction
Dual systems of Android and Windows（Optional with OPS） saving cost and easy to use, video conference software are recommonded to run under Windows system.
Quick response, at most 50-points touch control and smooth writing experience.
Built-in network switch chip saves a network switch.
All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed, support blue light protection.

HIGHLIGHT

Upgraded hardware with superb performance

Android 13
8G RAM + 128G ROM
Rich interfaces: HDMI, VGA, DP and Type-C

New OS & UI 3.0 to enhance experience

Customizable, easy-to-use bottom menu bar
Multi-window mode for seamless multi-tasking
Stylish 4K@60Hz user interface

Outstanding display with leading technologies

4K resolution
Anti-glare glass
Optical anti-blue light (TUV-certified)

Free projection to unleash limitless possibilities

Free projection via NFC, software, Wi-Fi, and dongle
Simultaneous multi-terminal projection
Maximized efficiency and seamless synergy with BYOM

Intelligent whiteboard for creative sharing

Smooth writing (50 touch points), intelligent recognition, and simultaneous multi-user input
Extensive document compatibility with files
(PowerPoint/Word/Excel/PDF), images, and videos
Easily saving meeting outcomes through code scanning

Smart meeting to boost communication

Auto framing to include all participants
Speaker tracking to focus on the main speaker
Acoustic baffle to filter out noise
Built-in 48MP camera, 8-microphone array, 2*20W+25W
loudspeakers to deliver state-of-art audio and visuals

Specification

Display

Screen Size : 65 inch
Backlight : DLED
Resolution : 3840 × 2160 @60 Hz
Brightness : 400 cd/m² （Typ. ）
Color Depth : 10 bit
Display Color : 1.07 G
Response Time : 5 ms
Panel Type : VA
Contrast Ratio : 5000:1 (Static), 30,000:1 (Dynamic)
Color Gamut : 72% NTSC (CIE1931) (Typ.)
Refresh Rate : 60 Hz
Viewing Angle : 178° (H)/178° (V)
Aspect Ratio : 16:9
Surface Hardness : 9H (Pencil), 7 (Mohs)
Surface Glass : Anti-Glare Glass
Surface Haze : 25% Haze
Glass Bonding Method : Zero Lamination
Display Area : 1428.48mmx803.52mm
Working Duration : 7 × 16 H
Transmittance : 88% ± 3
Lifespan : 50,000 hours

Touch

Type : Infrared
Touch Screen : Touch Point Up to 50-point multi-touch
Touch Response Time : ≤ 2 ms
Minimum Touch Object : ≥ 1.5 mm (≥ 90% touching area)
Touch Precision : ± 0.5 mm (≥ 90% touching area)
Touch Resolution : 32767 × 32767

Built-in System

Operation System : Android 13.0
Memory : 8 GB
Built-in Storage : 128 GB
Processor : Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）
GPU : Mali-G610 MC4
HDCP Version : 2.3

Camera

Pixel : Pixel 48MP for Photos & 8 MP for Video
Camera Function : Support intelligent switching between Android system, OPS, and PC.
Field Angle : 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical)
Distortion : ≤2.5%
Camera Resolution Ratio : Up to 4K

Microphone

Specification : Omni-directional 8-array layout
Mic Function : Echo reduction and smart noise-cancellation
Voice Distance : 12 m
Sampling Rate : 32 K
Mic Depth : 16 bit array layout
Mic Function : Echo reduction and smart noise-cancellation
Voice Distance : 12 m
Sampling Rate : 32 K
Mic Depth : 16 bit

Internal Function

Loudspeaker : Built-in 2 × 20 W+25W loudspeaker;
Bluetooth : Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
NFC : Support screen mirroring by Android phones
Light Sensor : Yes
Image Processing Technology : Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging；support shadow correction .
Audio Processing Technology : Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.

Interface

Video & Audio Input : HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1
Video & audio output : HDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1
Control interface : TOUCH-USB 3.0 × 3, RS232 × 1
Network Interface : LAN (1000 Mbps) × 2
WIFI AP & Station, 2.4G/5G : WIFI 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
Data Transmission Interface : USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)

Power

Power Supply : 100 to 240 VAC, 50/60 Hz
Standby Consumption : ≤ 0.5 W
Average Consumption : < 107W

General

VESA : 600 mm × 400 mm(4 × M8-25 mm)
Product dimensions : 1491.9 mm × 910.6 mm × 82.3 mm
Accessory : Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5M HDMI cable (2.0), power cable , bluetooth remote control.
Package Dimensions (W × H × D) : 1704 mm ×251 mm ×1073 mm
Net Weight : 37.6 kg
Gross Weight : 47.6 kg

Working Environment

Working Temperature : 0 °C to 40 °C (32 °F to 104°F)
Working Humidity : 10%~90% RH

Warranty

Parts 3 years Warranty

Download

DS-D5C65RB/B 4K UHD IFP

DS-D5C65RB/B Data Sheet .PDF
