HIKVISION DS-D5B86RB/EL 4K UHD IFPD
Brand : HIKVISION
Discount Price: ৳328,500.00
Regular Price: ৳3400,000.00
Status: In Stock

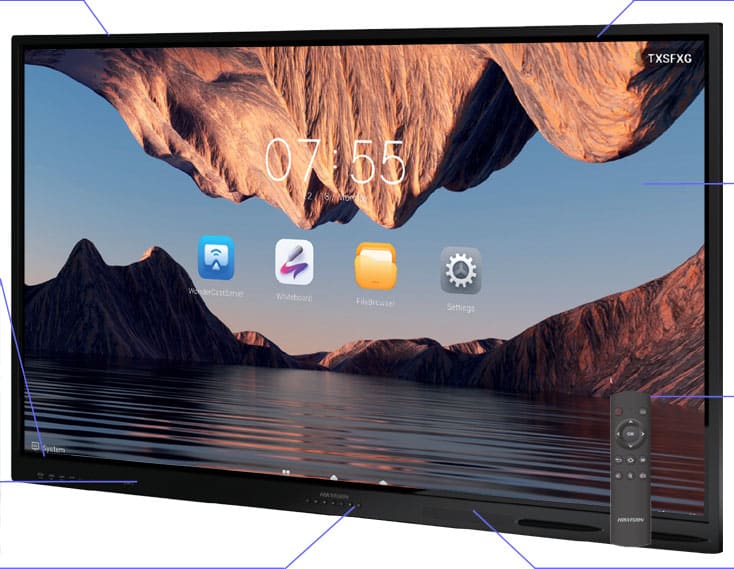

HIKVISION DS-D5B86RB/EL 4K UHD IFPD
86-inch 4K Interactive Display
- UHD 4K display with resolution of 3840 × 2160.
- Anti-glare and anti-blocking design to ensure smooth interaction.
- Dual systems of Android and Windows (optional) saving cost and easy to use, video conference software are recommended to run under Windows system.
- Quick response, at most 40-point touch controls and smooth writing experience.
- Multi-button design in front, convenient for classroom use.
- Compatible with OPS/OPS-C devices, realizing smooth switch between built-in systems.
Side interfaces
- 1*HDMI input,
- 1*audio input,
- 1*audio output,
- 1*RS-232,
- 1*touch-USB,
- 2*LAN (100 Mbps),
- 2*USB 2.0
Interfaces on the front
Equipped with 1*HDMI input, 3*USB 3.0 and 1*Type-C for data transmission
NFC module
Use RFID card to log in
to user’s own account
Quick access buttons
Power on/off, volume adjustment, homepage access, return, settings, and a customizable button for user-defined functions
Elegant appearance
Black metal frame treated with sandblasting
Powerful hardware and system
4-core CPU,
8G RAM + 64 GB ROM,
Android 13.0
Convenient IR Control
Control the interactive
display remotely.
Built-in loudspeakers
Built-in 2*20W loudspeakers
HIKVISION DS-D5B86RB/EL
Display
Screen Size
: 86 inch
Backlight
: DLED
Pixel Pitch
: 0.165 (H) × 0.494 (V) mm
Resolution
: 3840 × 2160 @60 Hz
Brightness
: 400 cd/m² （Typ.)
Color Depth
: 10 bit
Display Color
: 1.07 G
Response Time
: 5 ms
Panel Type
: VA
Contrast Ratio
: 5000:1 (Static), 30,000:1 (Dynamic)
Color Gamut
: 72% NTSC (CIE1931) (Typ.)
Refresh Rate
: 60 Hz
Viewing Angle
: 178° (H)/178° (V)
Aspect Ratio
: 16:9
Surface Hardness
: 9H (Pencil), 7 (Mohs)
Surface Glass
: 3.2 mm Anti-Glare Glass
Surface Haze
: 25% Haze
Display Area
: 1895.04 mm × 1065.96 mm
Working Duration
: 7 × 16 H
Transmittance
: 88% ± 3
Lifespan
: 50,000 hours
Touch
Type
: Infrared
Touch Screen
: 40-point multi-touch
Touch Response Time
: ≤ 2 ms
Minimum Touch Object
: ≥ 1.5 mm (≥ 90% touching area)
Touch Precision
: ± 1 mm (≥ 90% touching area)
Touch Resolution
: 32767 × 32767
Built-in System
Operation System
: Android 13.0
Memory
: 8 GB
Built-in Storage
: 64 GB
Processor
: Cortex-A55 × 4 (1.92GHz)
GPU
: Mali-G52 MP2 (2EE)
HDCP Version
: Support 1.4/2.2/2.3
Internal Function
Loudspeaker
: Built-in 2 × 20 W
Speaker Frequency
: 200-20Khz
Bluetooth
: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.2
NFC
: Support card reader
Light Sensor
: Yes
Interface
Video & Audio Input
: HDMI In （HDMI 2.0）× 2, Audio In × 1
Video & audio output
: Audio Out × 1
Control interface
: TOUCH-USB 2.0 × 1, RS232 × 1
Network Interface
:
LAN (100 Mbps) × 2
WIFI AP&Station，2.4G/5G
WIFI AP：IEEE 802.11 a/b/g/n/ac 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
WIFI Station：IEEE 802.11 a/b/g/n/ac/ax 1 × 1 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
Data Transmission Interface
: USB 3.0 × 3, USB 2.0 × 2, Type-C × 1 (Type-C supports USB 2.0)
Power
Power Supply
: 100 to 240 VAC, 50/60 Hz
Standby Consumption
: ≤ 0.5 W
Max. Consumption
: 326 W
Standby Consumption
: 268 W
Working Environment
Working Temperature
: 0 °C to 40 °C (32 °F to 104°F)
Working Humidity
: 10%~90% RH
General
VESA
: 800 mm × 600 mm (4 × M8-25 mm)
Product dimensions (W × H × D)
: 1960.44 mm × 1164.69 mm × 82.5 mm
Package Dimensions (W × H × D)
: 2157 mm × 1345 mm × 223 mm
Net Weight
: 59.71 kg
Gross Weight
: 79.0 kg
Accessary
: Wall mount bracket, hook, user manual, stylus × 2, packing list, 1.5 m power cable (European standard), remote controller
Warranty
Warranty
: Parts 3 years Warranty
Get specific details about this product from customers who own it.
This product has no reviews yet. Be the first one to write a review.
Available Accessories
Optional Items for HIKVISION IFP

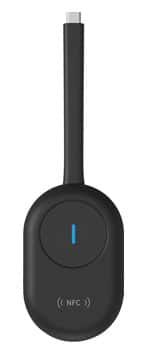

DS-D5SC3B-B
Wireless Dongle
- Support Windows/Mac OS.
- Type-C interface plug-and-play.
- Support Wi-Fi 2.4G/5G dual frequency.
- Support up to 4K resolution.
- Support reverse control by Windows/Mac.
- Add NFC module to support NFC screen mirroring with Android phones.
- Support indirectly charge for laptops.
- Support quick screen mirroring on Hikvision Interactive Flat Panel.

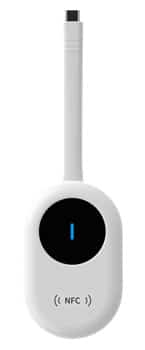

DS-D5SC3B-W
Wireless Dongle
- Support Windows/Mac OS.
- Type-C interface plug-and-play.
- Support Wi-Fi 2.4G/5G dual frequency.
- Support up to 4K resolution.
- Support reverse control by Windows/Mac.
- Add NFC module to support NFC screen mirroring with Android phones.
- Support indirectly charge for laptops.
- Support quick screen mirroring on Hikvision Interactive Flat Panel.
OPS Module (DS-D5AC12T5-8S2)
DS-D5AC12T5-8S2DS-D5AC12T5-8S2https://display.hikvision.com/en/products/interactive-flat-panel-display/interactive-flat-panels/accessories/ds-d5ac12t5-8s2/#:~:text=Accessories-,DS%2DD5AC12T5%2D8S2,-OPS%20ModuleDS-D5AC12T5-8S2
Operation System WIN11 ENT, Processor Intel® Core, i5-12450H, 12th. CPU Clock Speed
2.0 GHz Base, 4.4GHz Turbo. CPU Cores 8. CPU Threads 12. Memory 8G. Graphics Intel UHD Graphics for 12th Gen Intel Processors. Platform Architecture Intel® Alder Lake H. Cooling System Single Brass & Single Fan. Storage. 256G
OPS Module (DS-D5AC12T7-16S5)
DS-D5AC12T5-8S2DS-D5AC12T5-8S2https://display.hikvision.com/en/products/interactive-flat-panel-display/interactive-flat-panels/accessories/ds-d5ac12t5-8s2/#:~:text=Accessories-,DS%2DD5AC12T5%2D8S2,-OPS%20ModuleDS-D5AC12T5-8S2
Operation System WIN11 ENT, Processor Intel® Core, i7-12650H, 12th. CPU Clock Speed
2.3 GHz Base, 4.7 GHz Turbo. CPU Cores 10. CPU Threads 16. Memory 8G^2. Graphics Intel UHD Graphics for 12th Gen Intel Processors. Platform Architecture Intel® Alder Lake H. Cooling System Single Brass & Single Fan. Storage. 512G
Introducing the Ultimate Interactive Display Stand
DS-D5AC12T5-8S2DS-D5AC12T5-8S2https://display.hikvision.com/en/products/interactive-flat-panel-display/interactive-flat-panels/accessories/ds-d5ac12t5-8s2/#:~:text=Accessories-,DS%2DD5AC12T5%2D8S2,-OPS%20ModuleDS-D5AC12T5-8S2
Elevate your presentations with our cutting-edge interactive display stand, available in three versatile sizes to perfectly accommodate
displays ranging from 55″ to 110″! Durable and portable,
Our interactive display stands will allow increased flexibility with the positioning of your presentation. Designed to transform your ordinary meetings into extraordinary experiences, This stand offers unparalleled flexibility, ensuring that your content takes center stage every time.
