F6 is specially designed for regular urban flat. With 4 external 5dbi antennas, the wireless coverage can perfectly cover any regular flat or student accommodation; F6 can also be used as wifi signal extender, just one step to bridging two routers brings your twice wifi coverage. The built-in Qualcomm chip is compatible with any mainstream mobile phone signal module, and maintain your connection stable. In addition, it comes with Wifi timer switch function, you can enjoy your wifi but without worrying about spending too much time on it.
Energy-saving and Environmental-friendly Router
F6
Wireless N300 Easy Setup Router
Four Antennas
Optimized Performance
Four Antennas
Four Antennas

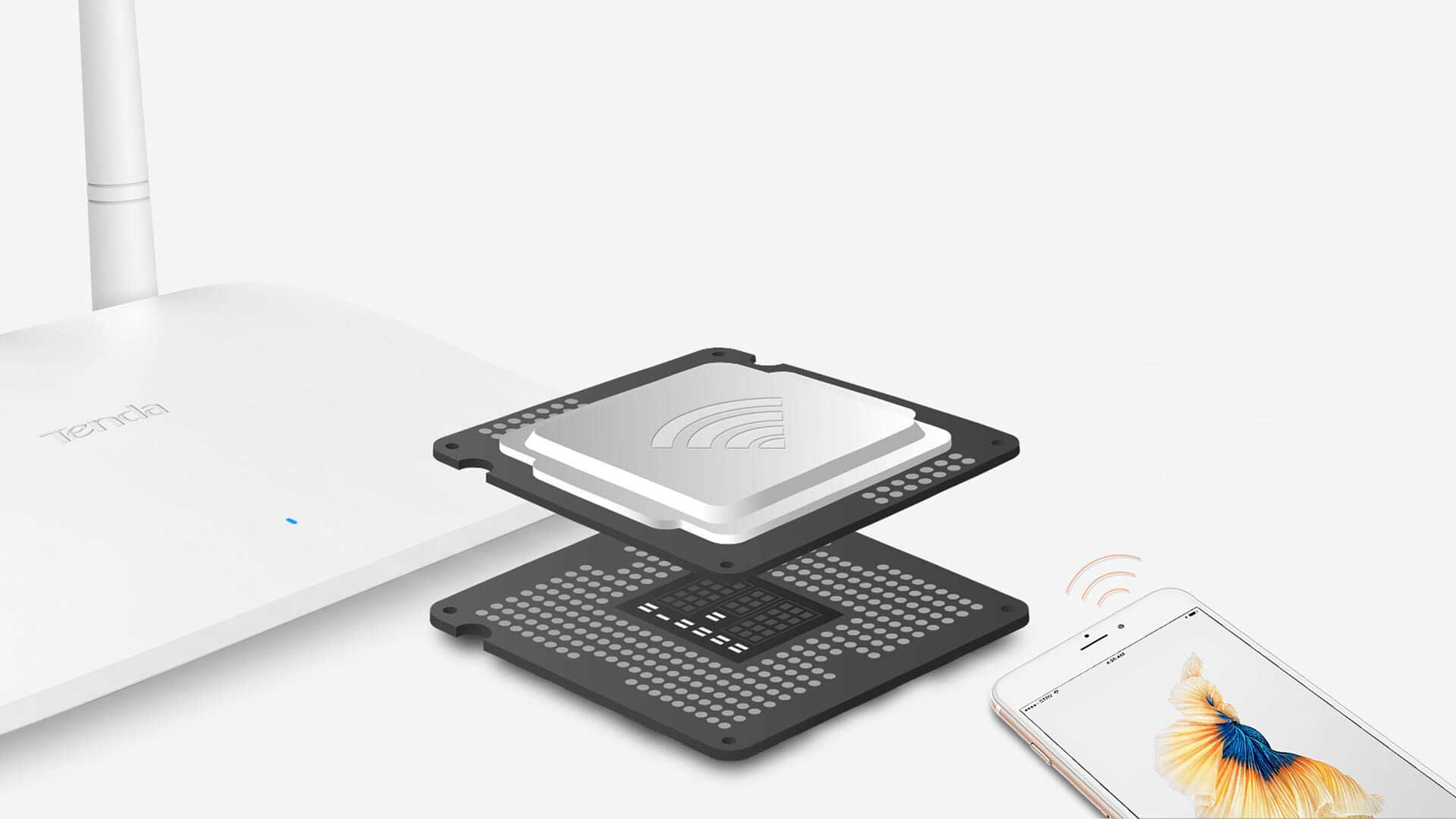

Qualcomm-chip
The built-in Qualcomm chip is compatible with any mainstream mobile phone signal module, and maintain your connection stable.

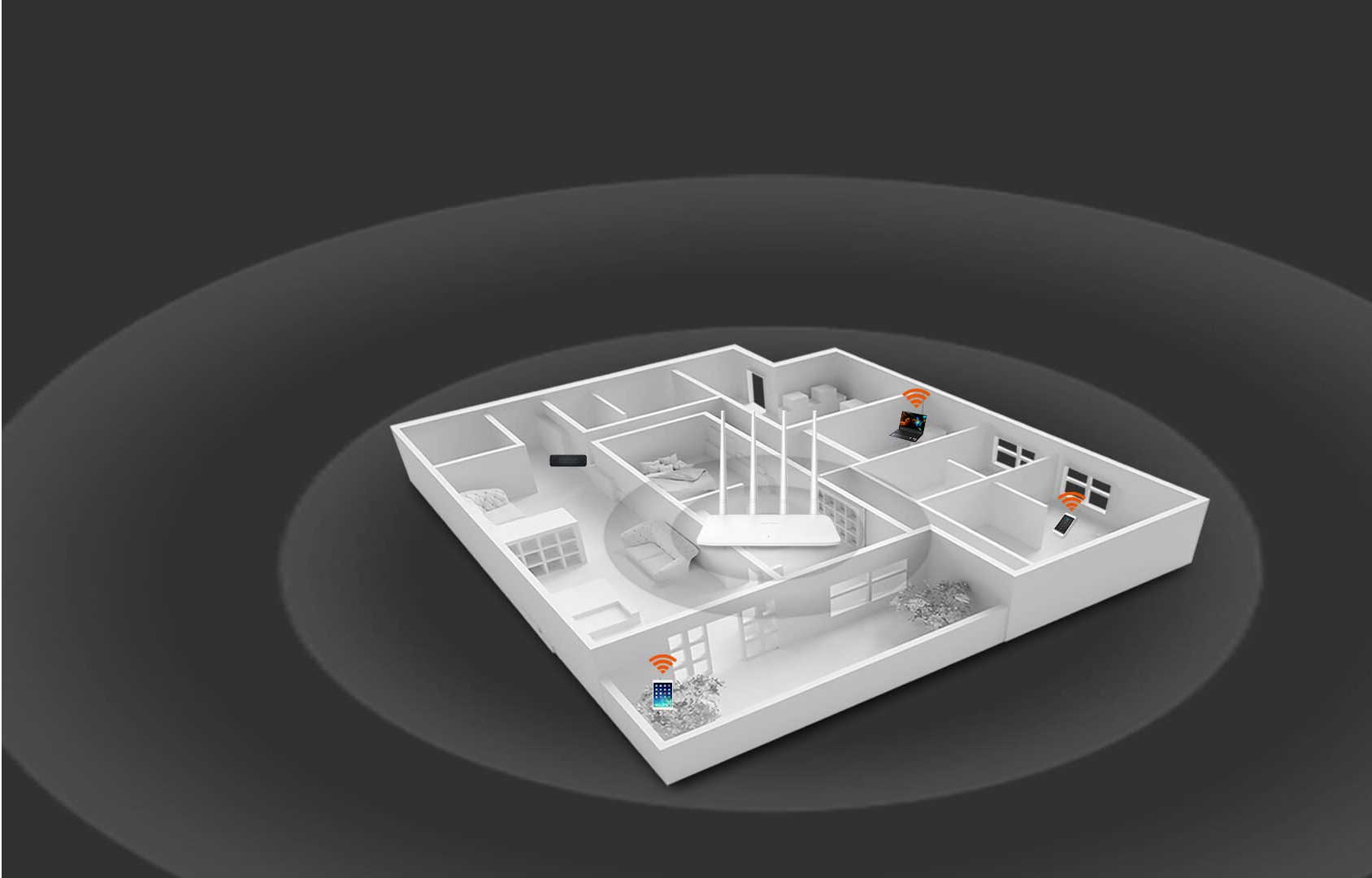

The latest repeater mode,better than traditional WDS mode
New WISP repeater mode,it is more easy and compatible and amplifies WiFi signals in one step,you can enjoy whole-room WiFi coverage and lag free WiFi performance,Support IPv6

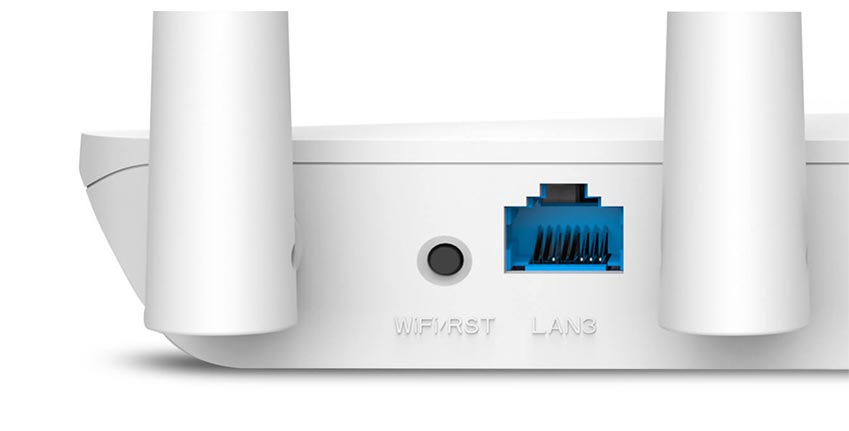

WiFi Timing
Time Setting
01 : 11 07 : 09
02 : 12 08 : 10
03 : 13 09 : 11
04 : 14 10 : 12
05 : 15 11 : 13
WiFi Time switch, one-touch setting, no more waste of time
function, you can enjoy your wifi but without worrying about spending too much time on it.
Simple appearance, light and fashionable
One-step installation
Automatic detection of Internet connection mode Network diagnosis
Signal stability
2×2 MIMO multiple transmission, effectively enhance signal transmission stability Smart channel optimization,choose the most smooth channel for you.
Advanced security functions
SSID wireless name hiding ,WPA/WPA2-PSK professional encryption
Specification_______________________________
Specification
Standard&Protocol
IEEE802.3, IEEE802.3u,IEEE802.3ab

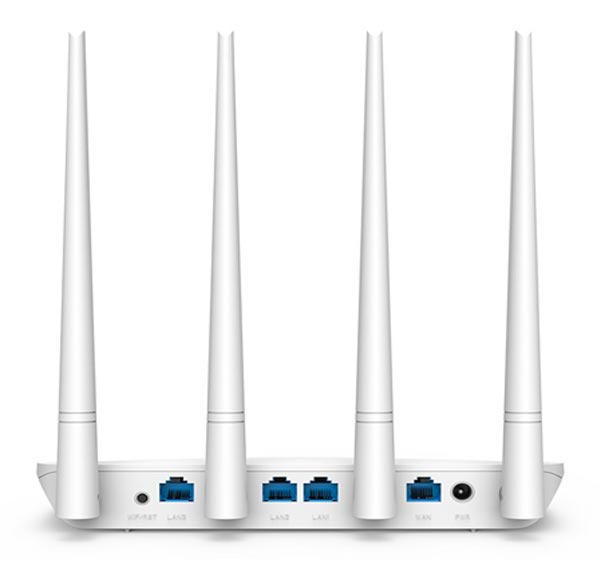

Interfaces
1*10/100Mbps WAN port 3*10/100Mbps LAN ports
Antenna
4*5dBi external antennas
Button
1*RST
Power
Input:AC 100-240V~50/60Hz 0.6A Output:DC 9V0.6A
LED Indicator
I SYS*1
Dimension
204*147.5*211mm
Wireless Functions
Wireless Standard
IEEE 802.11b/g/n 2.4GHz
Data Rate
2.4GHz: Up to 300Mbps
Frequency
2.4GHz
Wireless Security
WPA/WPA2, WPA-PSK/WPA2-PSK
Software Function
Internet Connection Type
PPPoE, Dynamic IP, Static IP PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Operating Mode
Wireless Router Mode Universal Repeater Mode WISP Mode AP Mode
DHCP Server
DHCP Server DHCP Client List DHCP Reservation
Virtual Server
Port Forwarding DMZ Host UPnP
Security
Client Filter Parental Control(support black list and white list) Remote Web Management
Firewall
Forbid UDP flood attack Forbid TCP flood attack Forbid ICMP attack Forbid WAN PING from internet
DDNS
no-ip,DynDNS,Oray
VPN
IPsec pass through PPTP pass through L2TP pass through
