COMMSCOPE UTP CABLE

CommScope Category 6 (Cat 6) cables are an integral part of structured cabling systems, ensuring reliable data transmission in various applications. We offer a comprehensive range of Cat 6 cables designed to meet the demands of modern networking environments. These cables adhere to stringent industry standards, making them ideal for both residential and commercial installations. Key features include:

Performance Excellence: Provide exceptional performance, exceeding channel specifications. They offer 1dB headroom for PSNEXT (Power Sum Near-End Crosstalk), 1dB headroom for PSELFEXT (Power Sum Equal-Level Far-End Crosstalk), and improved insertion loss.
Variety of Types: Whether you need F/FTP (Foiled/Foiled Twisted Pair), F/UTP (Foiled/Unshielded Twisted Pair), or U/UTP (Unshielded Twisted Pair) cables, CommScope has you covered.
Lead-Free Jacketing: Feature environmentally friendly, lead-free jacketing materials.
Packaging Options: Available on reels or reel-in-a-box, with standard put-ups of 1000 ft splice-free lengths.

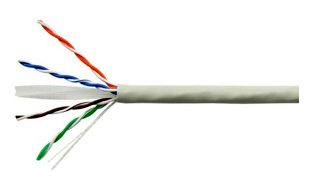

Copper Cable, category 6, 4 pair, U/UTP Cable, PVC, 24 AWG solid, 305m reel-in-box, gray, Jacket Material: PVC

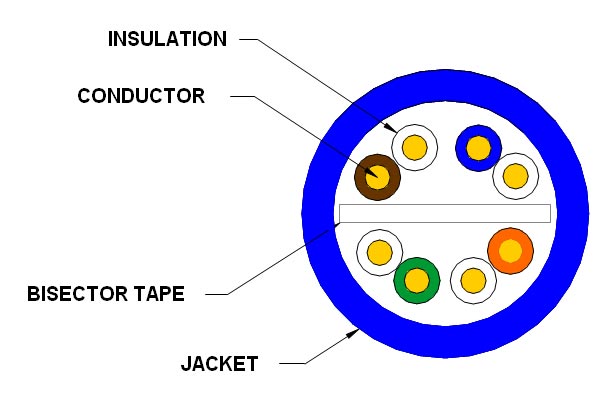

Cross Section Drawing

Click on image to enlarge.

Product Classification

Portfolio :
Product Type :

NETCONNECT®
Twisted pair cable

General Specifications

ANSI/TIA Category :
Cable Component Type : Cable Type :
Conductor Type, singles :
Conductors, quantity :
Jacket Color :
Pairs, quantity :
Transmission Standards :

6
Horizontal
U/UTP (unshielded)
Solid
8
Gray
4
ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E

Dimensions

Cable Length :
Diameter Over Jacket, nominal :
Conductor Gauge, singles :

304.8 m | 1000 ft
5.588 mm | 0.22 in
24 AWG

Electrical Specifications

Operating Voltage, maximum :
Remote Powering :

80 V
Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A

Material Specifications

Conductor Material :
Insulation Material :
Jacket Material :

Bare copper
Polyolefin
PVC

Environmental Specifications

Operating Temperature :

-20 °C to +60 °C (-4 °F to +140 °F)

Packaging and Weights

Cable weight :
Packaging Type :

37.204 kg/km | 25 lb/kft
Reel in box

Regulatory Compliance/Certifications

Agency
CHINA-ROHS
REACH-SVHC
ROHS
UK-ROHS

Classification
Below maximum concentration value
Compliant as per SVHC revision on www.commscope.com/ProductCompliance
Compliant
Compliant
